Product Overview

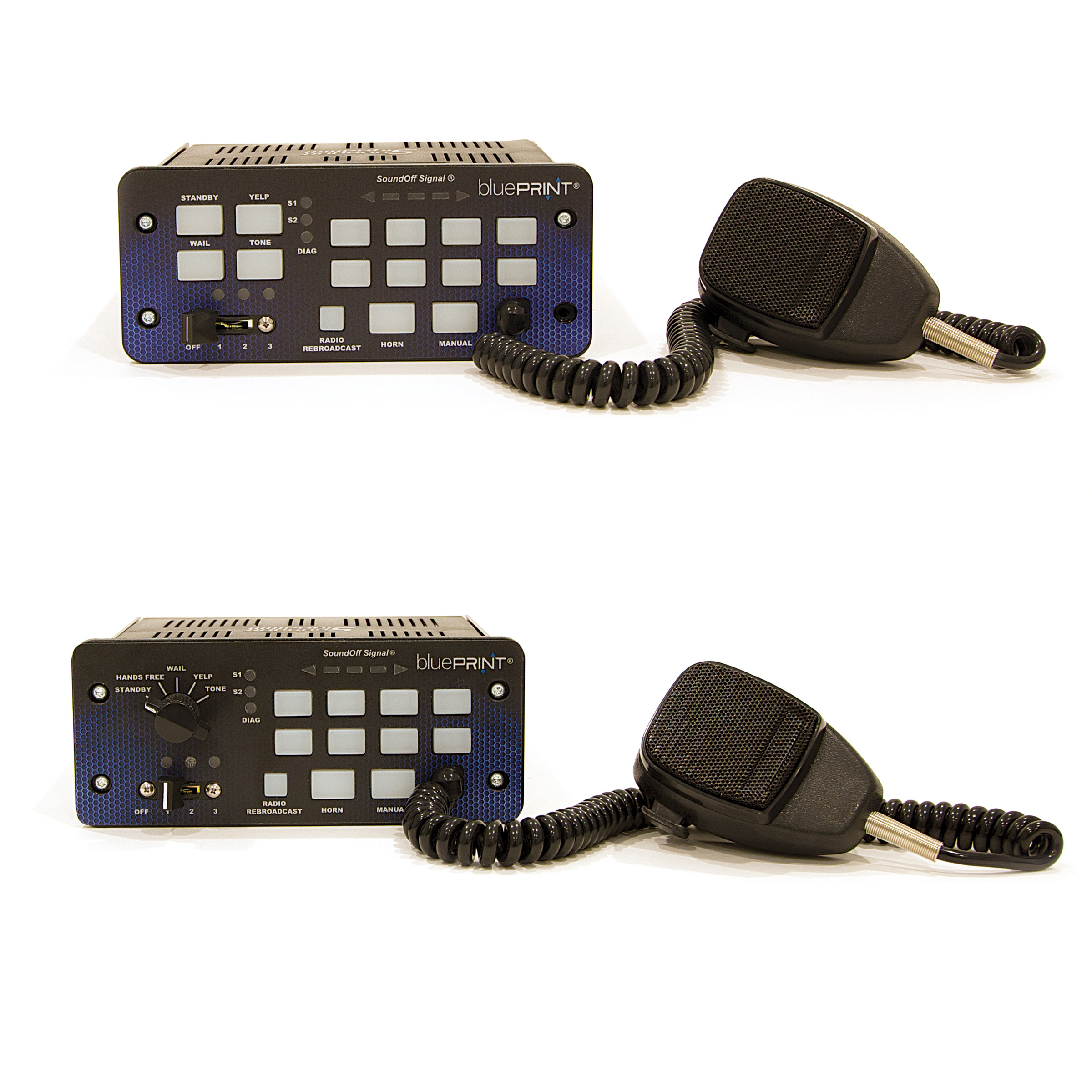

Provides a higher level of current outputs necessary to operate police radios, laptop inverters, etc. This siren provides nine 10-AMP and three 20-AMP relay outputs along with a horn ring relay.

Product Resources

Request Additional Information

Technical Specifications

Input Voltage
10-16Vdc (Negative Ground)
Total Max Relay Current
100 Amps
Siren Maximum Input Current
100W Speaker: 7 Amps @ 13.6 Vdc
100W Speakers (2x): 14 Amps @ 13.6 Vdc
Siren Power Outputs
100 and 200 Watts
Sleep Current
<1 mA
Inputs
1x horn ring input, 1x park kill, 1x CP back light, 1x radio rebroadcast and 1x PA
High Voltage Protection
>18 Vdc will cause siren output to cease, resume at normal
Low Voltage Protection
<9.0 volts will cause siren output to cease and will resume when system voltage is above 10.0 volts
Operating Temp
-40° C to +50° C
Dimensions
2.62″ H x 7.00″ W x 6.51″ D
Valid Input Threshold: High
>10.6 V – park kill, PTT, auxiliary, horn ring and >9.0 V – primary/secondary backlight
Valid Input Threshold: Low
<0.6 V
Relay Outputs
Quantity 3: 20 Amps, Quantity 7: 10 Amps (+V supplied) and Quantity 2: 10 Amps (+V supplied or dry contact selectable)
