Product Overview

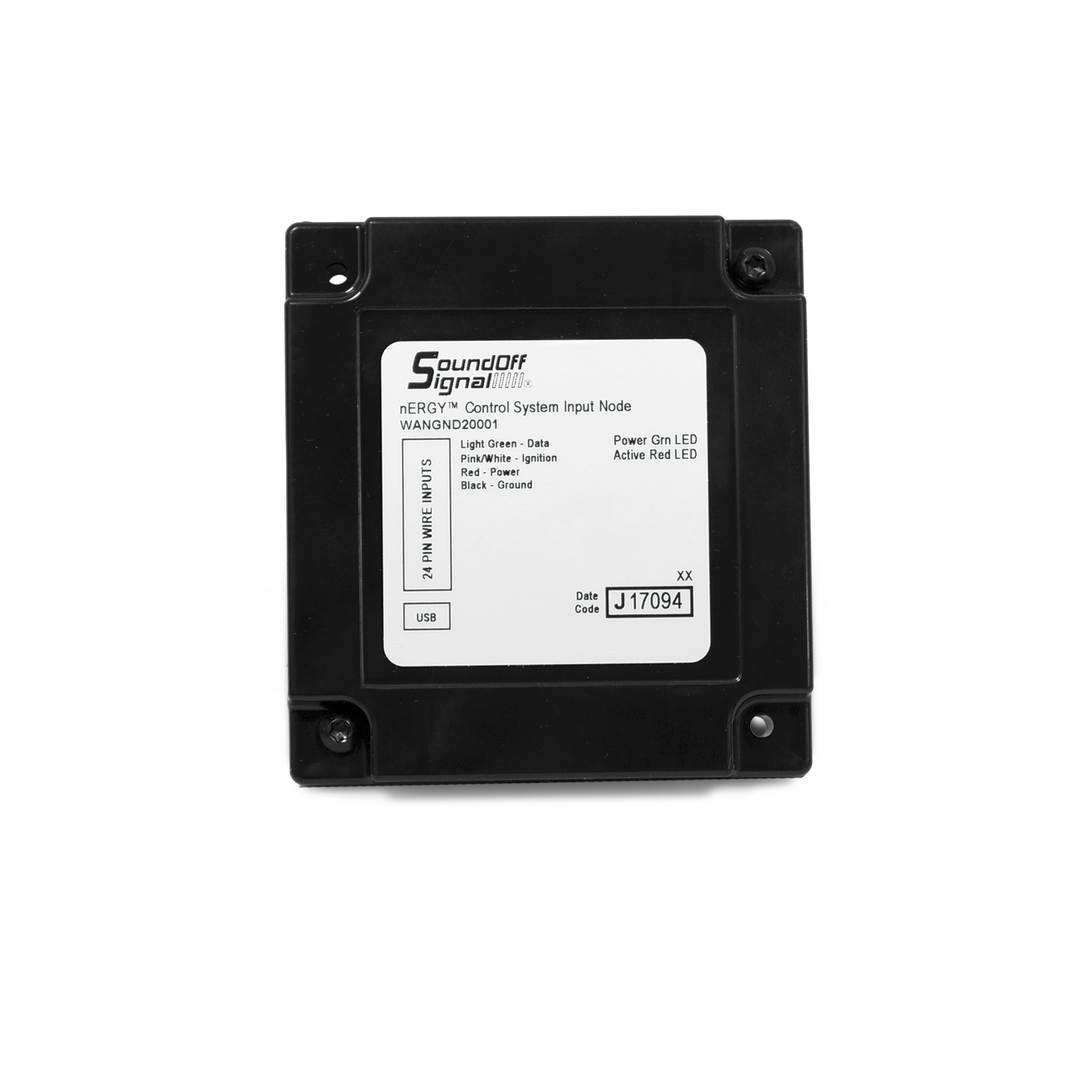

The Input Node provides 20 inputs for connection to vehicle devices.
(13) Active High/Low Inputs
(7) Active High Inputs

Technical Specifications

Input Voltage
10-16Vdc (Negative Ground)
Maximum Input Current
N/A
Outputs (Sum of ALL used Outputs Shall Not Exceed 100Amps)
None
IGN ON: Standby Current
30 mA
IGN OFF: Sleep Current
0.20 mA
Inputs
20 Total
13x Active High/Low Inputs
7x Active High Inputs
1x Local IGN Input (Local Sleep Mode)
Reverse Polarity Protection
Protected
Transient Protection
Protected
High Voltage Protection
>16V; High Voltage Error Code Set
Low Voltage Protection
<9V; Low Voltage Error Code Set
Operating Temp
-40° C to +65° C
Dimensions
3.5″ x 3.5″ x .75″
Weight, Boxed
5 oz.
Weight, Device Only
4 oz.
Valid Input Threshold – High
>7.5V
Valid Input Threshold – Low
<1.5V
The Input Node is not waterproof. Install in a protected location away from excessive heat and moisture.
