Product Overview

•  Easy to install and designed to be compatible with different vehicles
•  Quick installation by use of quick connect “T-tap” connectors
•  Connectors allow for quick replacement/removal of the ignition security system
•  Allows the vehicle to stay running when the key is removed from the ignition switch
•  Brake pedal and shift lever movement disables the ignition security system and stops the engine (sounds horn if connected)
•  Over-ride simply deactivates by turning the key to the run position and depressing brake
•  Automatic low voltage detection will activate the horn to provide notification of vehicle problems
•  Additional universal output provides normally open or normally closed contact for starter disable, gun lock disable, camera record, etc.
•  Includes illuminated remote switch
•  Optional horn or siren alarm
•  Order Number

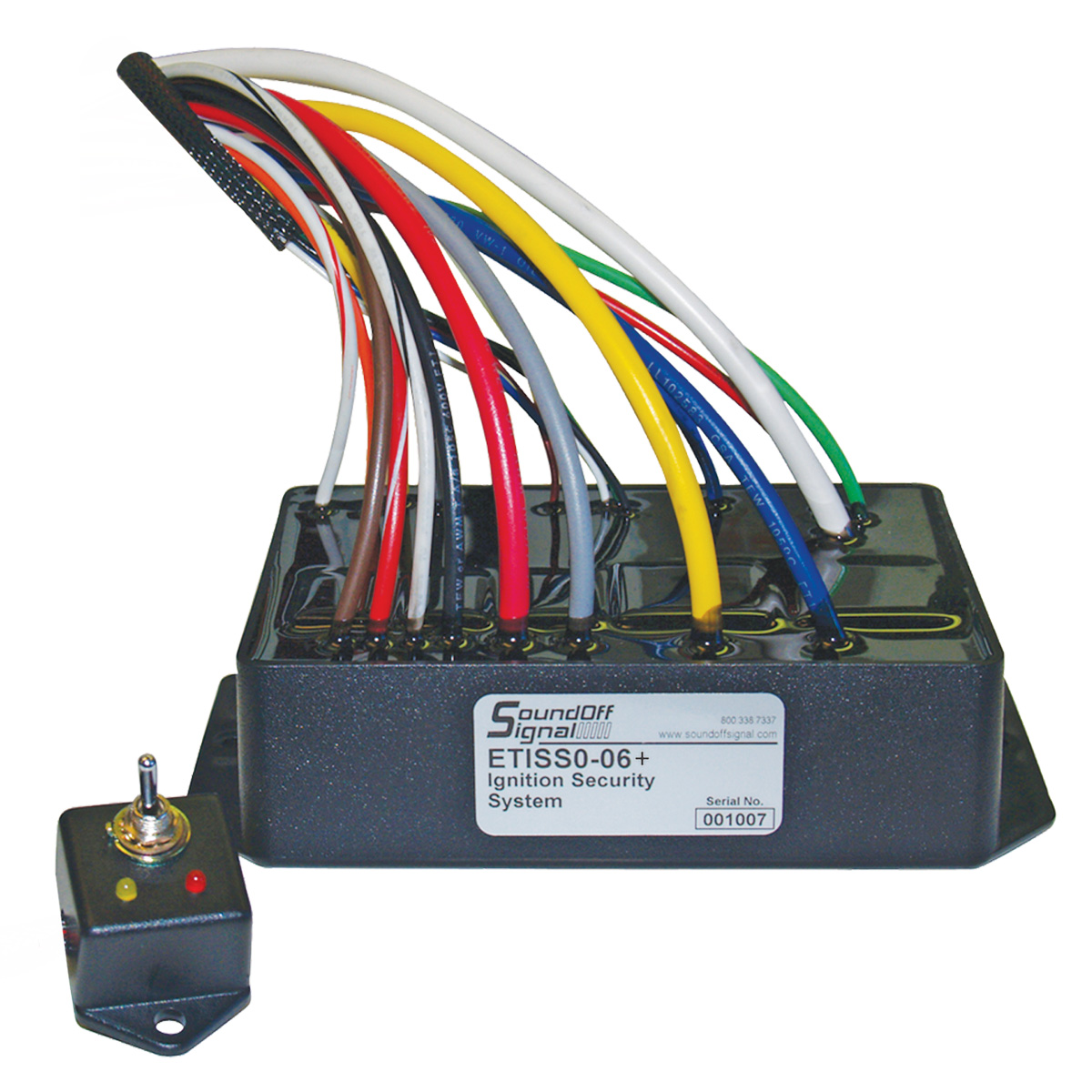

•  2007 Ignition Security System (I.S.S.)

Product Resources



For Technical Specifications, please see attachments above.

Technical Specifications

Input Voltage
10-16 Vdc
Current Draw
Standard Model: 4-10 Amp Outputs
Heavy Duty Model: 8 Outputs, 130 Amps total
Dimensions
Standard Model: 6″ (15 cm) L x 3.4″ (8.6 cm) H x 0.8″ (2.0 cm) D
Heavy Duty Model: 6″ (15 cm) L x 3.5″ (8.9 cm) H x 1.5″ (3.8 cm) D
Mounting
Behind the dash and within the wire length of the steering column, on 5.6″ (14 cm) centers, 24″ (61 cm) wires (standard model) , 16″ (41 cm) wires (heavy duty model)
Warranty
One-year
